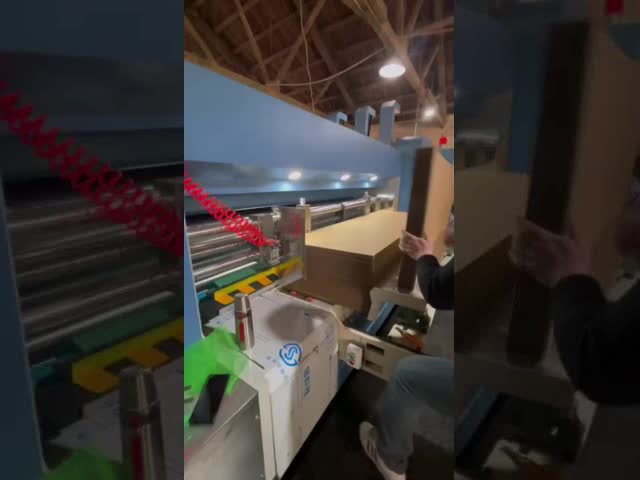

Factory Selling Paperboard Corrugated Automatic Carton Box Making Machine
Function and configuration
| No | Item | Function and configuration |
| 1 | The printing roller | Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast. Full hang-plate device, 10mm hang-plate strip is available. Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version,unloading version. |
| 2 | Impression roller | Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable. Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount. |
| 3 | Feeding roller | Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding. Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount. |
| 4 | Anilox roller | Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation Mesh amount 200, 220,240,260 or according to customers' demand Pneumatic lift-down mechanism(while feeding, the anilox roll go down automatically; stop feeding, it go up automatically ) Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount. |
| 5 | Rubber roller | Adopt high quality stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly Special grinded crowning, work well |
| 6 | Phase adjustment | Planetary gear structure Printing phase adopts 360 degrees electric adjustment (either run or stops) Printing roller manual horizontal adjustment, adjustment range + / - 14 mm |
| 7 | Ink supply system | With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain. Ink filter, filter impurities, more better printing |
| 8 | Printing phase fixed device | When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position |
| 9 | Zero-return and memory | After washing the printing plate, press reset button the printing roller will back to the original printing position. |
